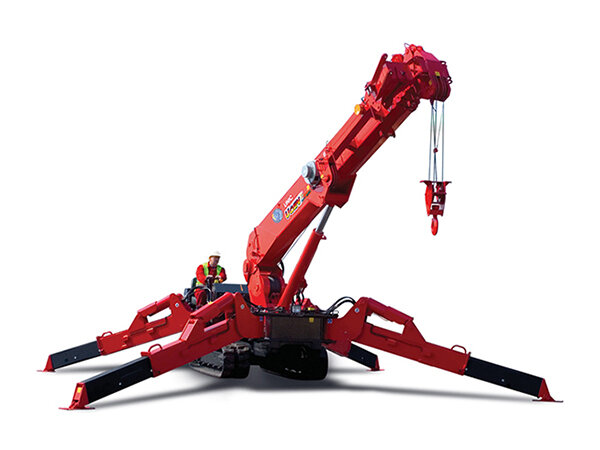

UNIC URW-706 – Mini Spider Crane

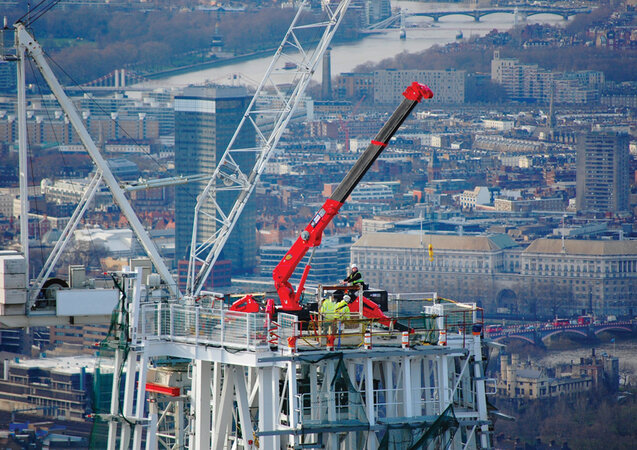

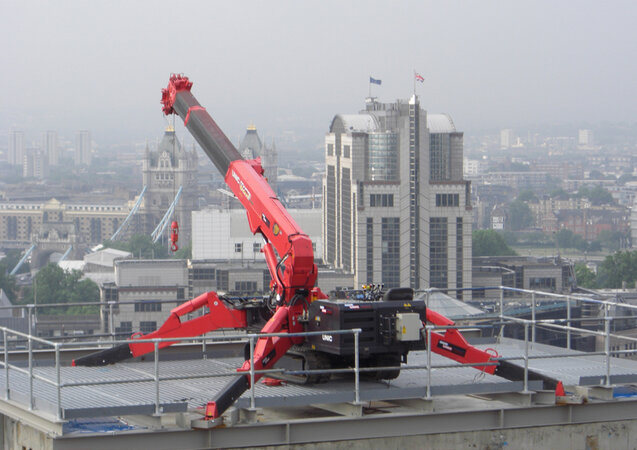

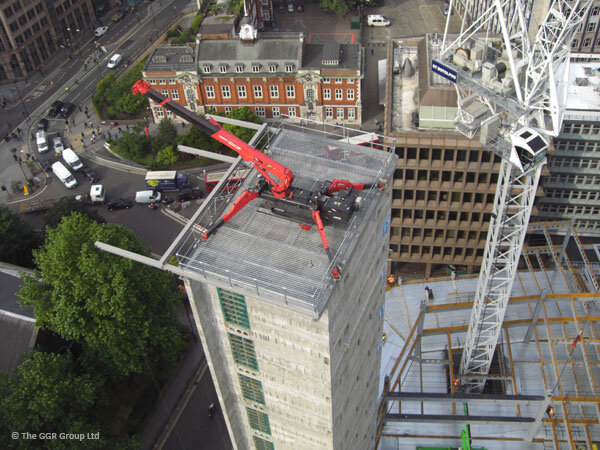

The UNIC 706 is one of the biggest mini cranes in the range, possessing 6 tonnes of lifting power, yet still compact enough for lifting in a confined space. From power stations to marinas, shopping centres to rooftop operations, the UNIC URW-706 has the perfect combination of working flexibility and power. This mini-crane is capable of handling loads of 6 tonnes to a radius of 3 metres and a height of 7.2 metres. An optional searcher hook and a 3.1m long fly jib deliver a maximum hook height of 22.7m.

Capacity 6.0t x 3.0m
Total width 1.67m
Max working radius 18.6m
Max lifting height 19.5m (22.7m with second stage fly jib)
Max boom length 19.2m
Diesel powered and optional mains electric
Zero length increase with electric option
Radio remote control as standard
Working area limitation
Stowable fly (extension) jib (optional)
Searcher hook (optional)
Slew limitation (optional)
Intelligent throttle activation for economic fuel consumption
Optional low marking tracks
Optional radio remote control with feedback display
Maximum wind speed for safe use is 36km/h, 22mph or 10m/s

Ref: MCU706

Capacity: 6t x 3m
Max Lifting Height: 19.5m
Total Width: 1.67m
Weight: 7920-8310kg

Contact Sales

Add to Enquires

Features

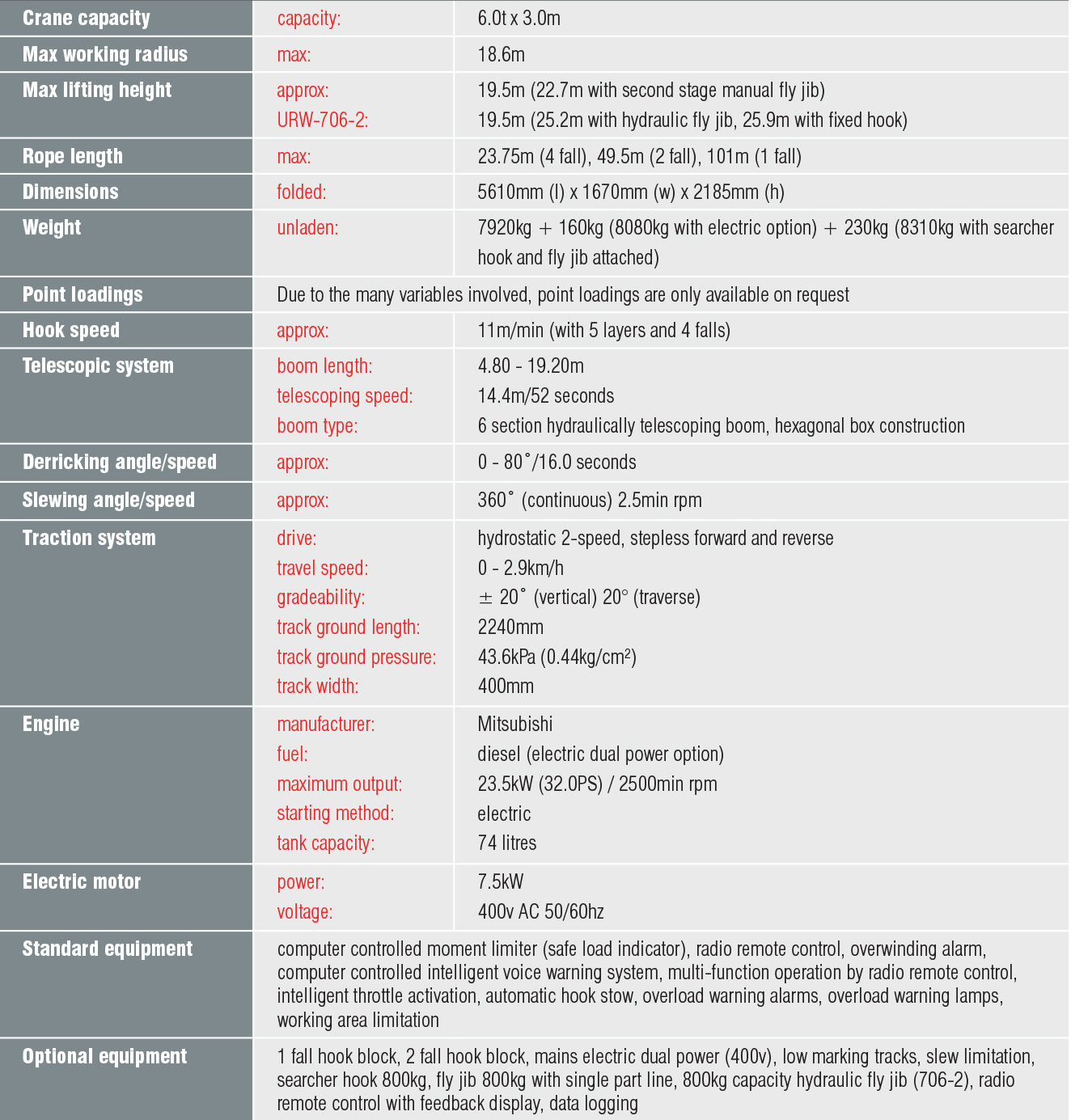

Technical Table

Dimensions

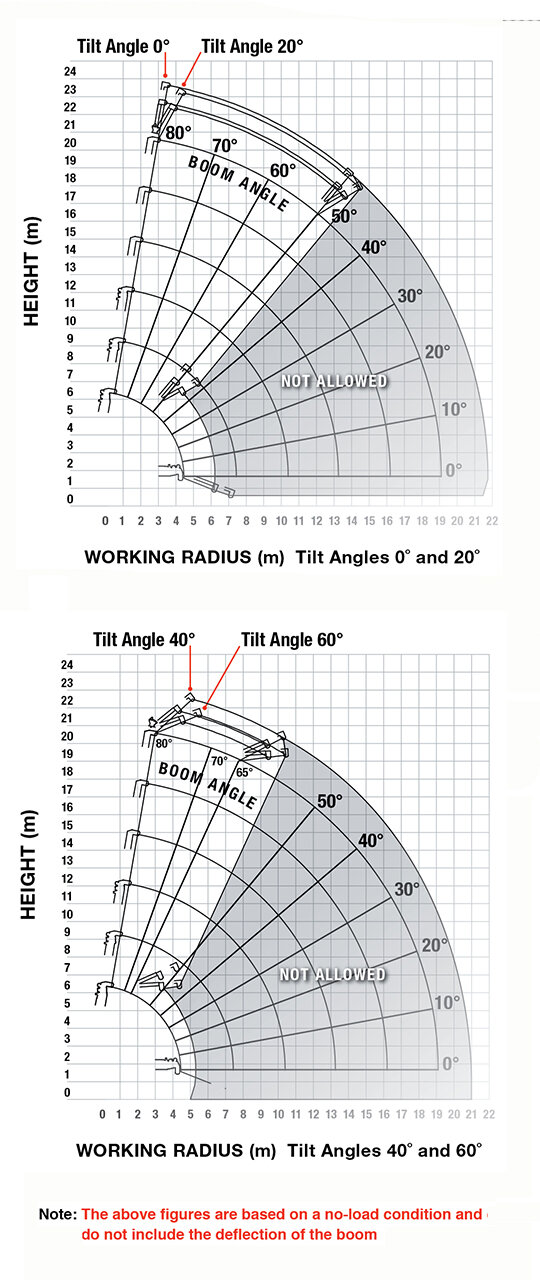

Fly Jib Working Ranges

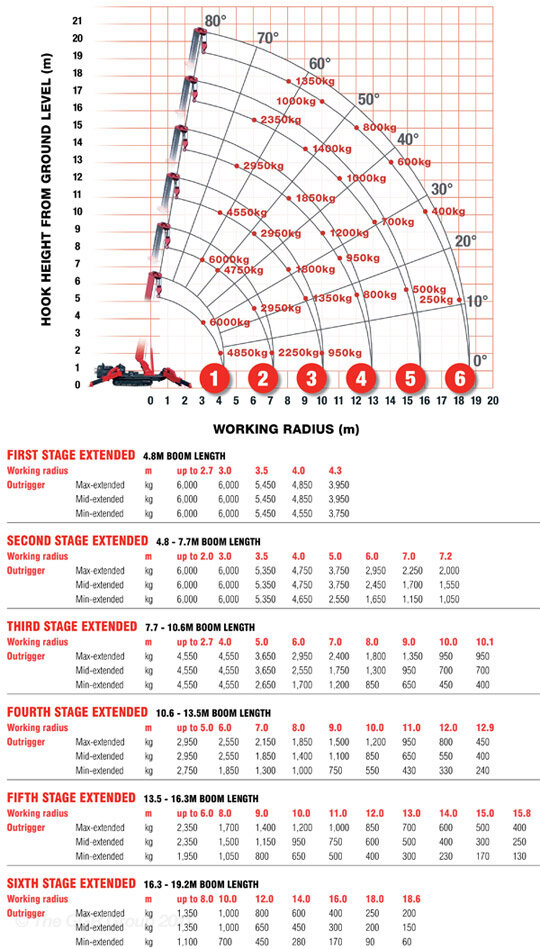

Boom Stages

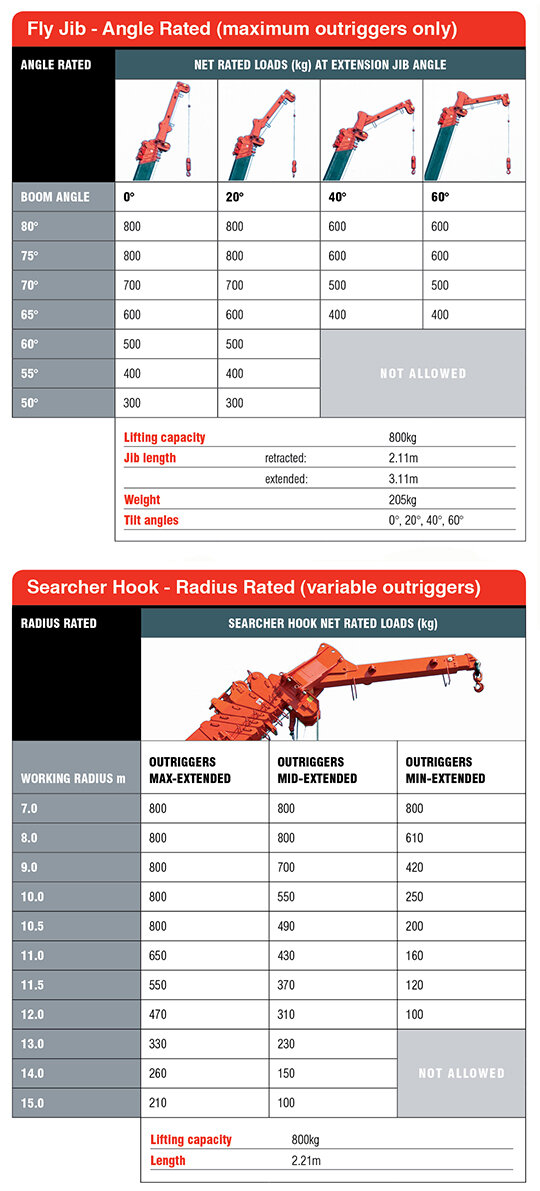

Angle Ratings

Fall Stages

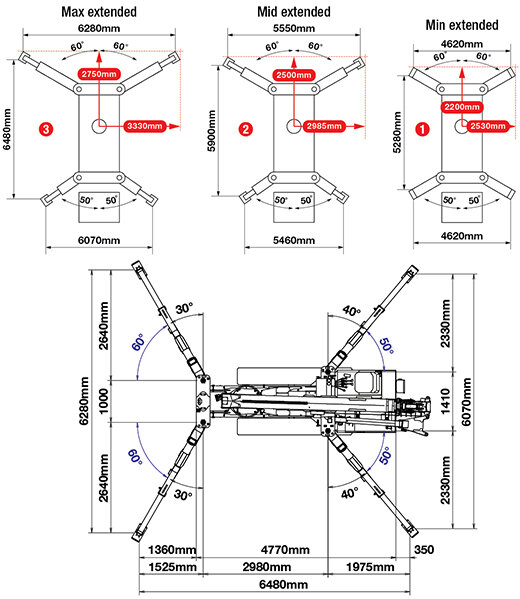

Outrigger Specs

Specification

The UNIC URW-706 can be controlled from the operators driving seat or by a fully function radio remote control for precise placement of loads. Digital feedback and data logging are also available as extras. As the official provider of UNIC Cranes across Europe, we have an experienced and knowledgeable team of lifting experts on hand to provide any technical support you may need. We also offer crane inspections, servicing, repairs and a full spare parts service at a moderate price with any crane purchased.

If you are looking to hire or purchase a UNIC URW-706, or require any further information, contact GGR Group today.

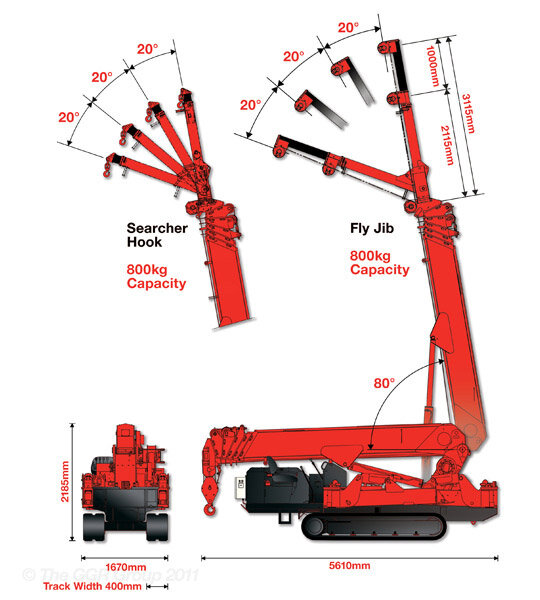

Dimensions

Capacity:

6.0t x 3.0m

Maximum Working Radius:

18.6m

Maximum Lifting Height:

19.5m (22.7m with second stage manual fly jib)

Rope Length:

23.75m (4 fall), 49.5m (2 fall), 101m (1 fall)

Length (Folded):

5610mm

Width (Folded):

1670mm

Height (Folded):

2185mm

Weight (Unladen):

7920kg + 160kg (8080kg with electric option) + 230kg (8310kg with searcher hook and fly jib attached)

Traction System

Drive:

hydrostatic 2-speed, stepless forward and reverse

Travel Speed:

0 - 2.9km/h

Gradeability:

± 20˚ (vertical) 20° (traverse)

Track Ground Length:

2240mm

Track Ground Pressure:

43.6kPa (0.44kg/cm²)

Track Width:

400mm

Steering Angle:

Min Turning Radius:

Front Tyre Size:

Rear Tyre Size:

Power Plant

Fuel:

diesel (electric dual power option)

Manufacturer:

/Manufacturers/Mitsubishi

Maximum Output:

23.5kW (32.0PS) / 2500min rpm

Starting Method:

electric

Tank Capacity:

74 litres

Electric Motor Power:

7.5kW

Electric Motor Voltage:

400v AC 50/60hz

Battery Charger:

Telescopic System

Hook Speed:

11m/min (with 5 layers and 4 falls)

Boom Length:

4.80 - 19.20m

Telescoping Speed:

14.4m/52 seconds

Boom Type:

6 section hydraulically telescoping boom, hexagonal box construction

Derricking Angle/Speed:

0 - 80˚/16.0 seconds

Slewing Angle/Speed:

360˚ (continuous) 2.5min rpm

Equipment

Standard Equipment:

computer controlled moment limiter (safe load indicator), radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, overload warning alarms, overload warning lamps, working area limitation

Optional Equipment:

1 fall hook block, 2 fall hook block, mains electric dual power (400v), low marking tracks, slew limitation, searcher hook 800kg, fly jib 800kg with single part line, 800kg capacity hydraulic fly jib (706-2), radio remote control with feedback display, data logging, forward facing camera, variable footprint option
