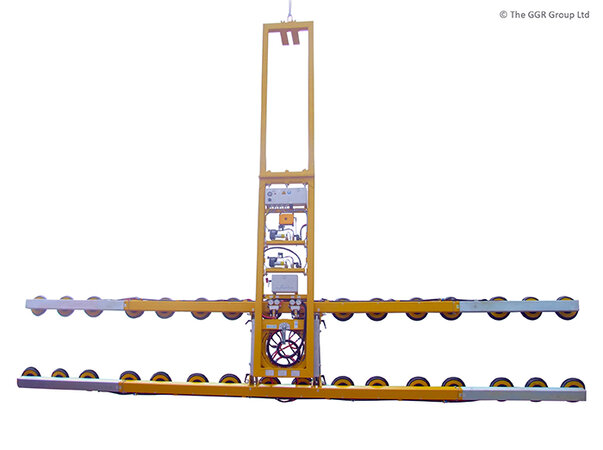

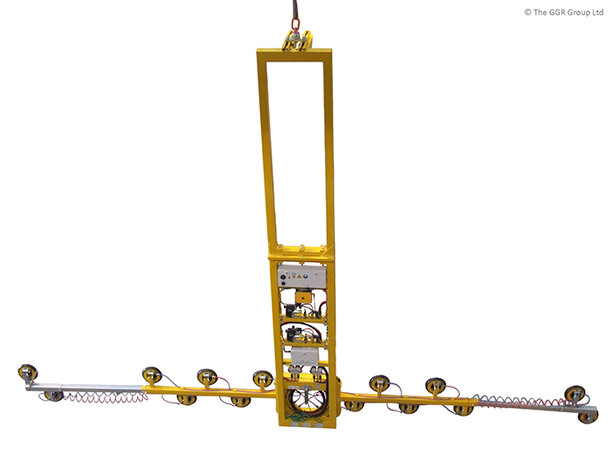

Quad Curve 2000
Exclusive to GGR Group, the quad-circuit Quad-Curve 2000 is the highest capacity curved glass vacuum lifter in the UK. When fitted with its extension arms and all 32 pads, this machine can safely lift convex glass loads up to 2 tonnes in weight.
- Capacity: 2000kg (with extension arms and 32 pads) / 1400kg (20 pads) / 320kg (14 pads – flat glass only)
- Quad circuit vacuum system with 2 pumps and 4 vacuum reserve tanks
- Manual 180° lockable rotation
- Lifter depth: 450mm
- Weight: 713kg (with extension arms and 32 pads) / 557kg (no arms, 20 pads)
- Radio remote control as standard
- 12v rechargeable battery with integral 110v or 240v charger
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL48
Capacity: 2000kg
Rotation: Manual 180°
Battery: 12v
Reference: VGL48
Features

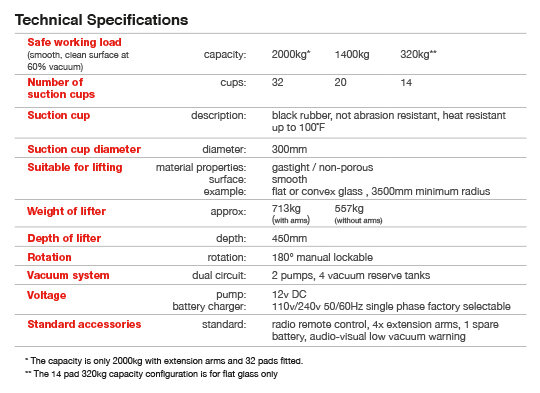

Technical Table

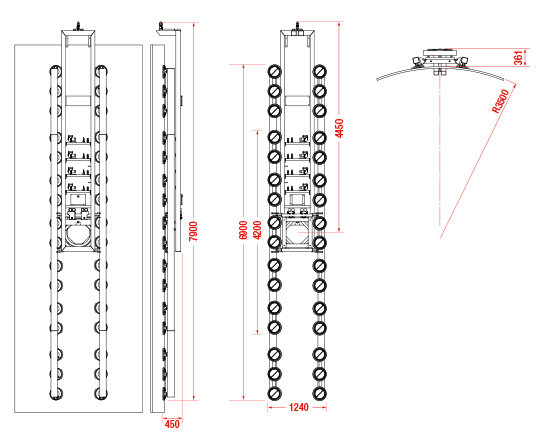

Dimensions
Specification
The Quad-Curve 2000 vacuum lifter comes with a generous 6.9 metre long frame (with extension arms) and manual 180° lockable rotation for moving glass into the optimum position. The Quad-Curve 2000 features quad-circuit vacuum technology, with four independent vacuum circuits offering added safety when handling larger and heavier architectural glass units with a 3.5m minimum radius.
The Quad-Curve 2000 lifter features a radio remote control as standard for installing glazing with precision.
If you are looking to hire or purchase the Quad Curve 2000, or require any further information, contact GGR Group today.
