Glass Vacuum Lifters

Woods Powr-Grip MT1 – Vacuum Lifting

Make glass lifting a one person job thanks to the reliable Woods Powr-Grip MT1 lightweight vacuum lifter. Offering more vacuum lifting power than everyday hand vacuum cups, the Woods Powr-Grip MT1 comes with 70kg capacity.

  • Single circuit vacuum
  • 90° manual tilting from vertical to horizontal
  • On-board maintenance-free vacuum pump
  • 12v rechargeable battery with integral 110v or 240v charger and battery energy gauge
  • Audio-visual low vacuum alert
  • Not suitable for use in the rain – read more in our safety guide
  • Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s

Capacity: 70kg
Tilt: Manual 90°
Reference: VGL01

Features

Technical Table

adsf

Dimensions

Specification

Weighing only 17kg these lightweight vacuum lifters are designed as a below-the-hook attachment and help to reduce the risk of injury normally associated with manual glass handling. This models has proven to be a popular aid for vacuum lifting, not just in the glazing trade, but also in the automotive, manufacturing and transport sectors since it has the flexibility to lift metal, plastic, ceramic and composite materials too.

If you are looking to hire or purchase a Woods Powr-Grip MT1, or require any further information, contact GGR Group today.

Ref: VGL01

Safe Working Load:

70000kg

Suction Cup Rows:

Number of Suction Cups:

1

Suction Cup Description:

black rubber, not abrasion resistant

Suction Cup Diameter:

280mm

Rotation:

Tilt:

90° manual

Vacuum System:

single circuit

Voltage Pump:

12v DC from rechargeable battery

Voltage Battery Charger:

110v/240v 50/60Hz single phase factory selectable

Voltage Mains Operation:

Notes:

Weight of Lifter:

17kg

Depth of Lifter:

230mm

Material Properties:

gastight / non-porous

Surface:

smooth

Example:

glass, plastic boards, ceramic plates, sheet metals, coated boards

Stone Pads:

68kg capacity

Curved Pads:

68kg capacity

Special Pads:

low marking & heat resistant pads available

Standard:

Extras:

Accessories

Universal Vacuum Pad Protector

The elasticated vacuum pad cover is designed to keep the pad area of vacuum lifters clean from dust, and moisture and protect against accidental damage and moisture.

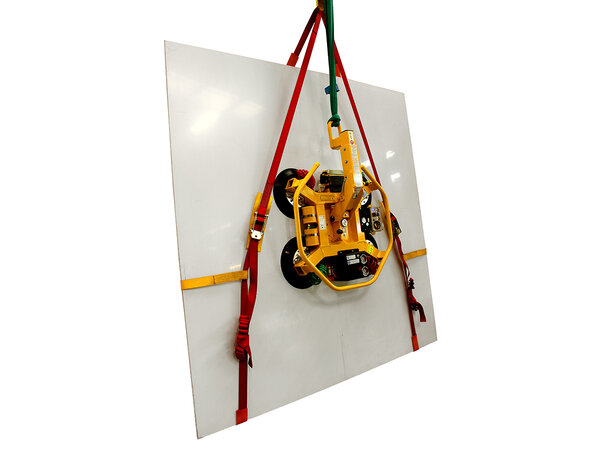

GGR Secondary Safety Device (SSD) – Glass

The secondary safety device from GGR Group provides extra safety when lifting loads with our range of popular glass vacuum lifters.

Low Marking Vacuum Pads

These low marking vacuum pads are suitable for use with Kombi, Hydraulica and DSZ2 vacuum lifters.

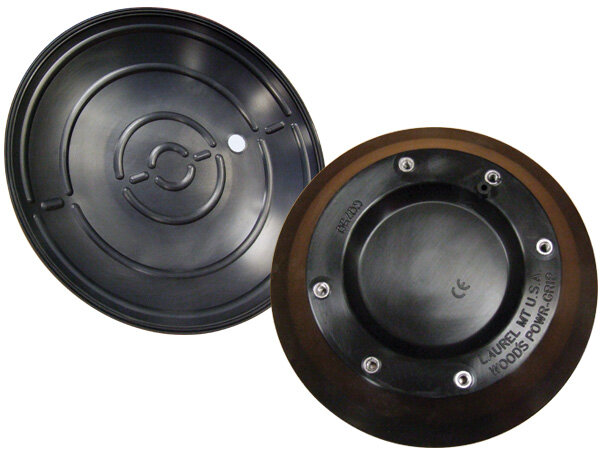

Woods Curved Pads

Suitable for lifting glass or other non-porous sheet materials with curved surfaces, these Woods Curved Pads can be easily fitted to any lifter in our Woods Powr-Grip range.

Documents & Media

Media
Main View

Related Content

Related Products

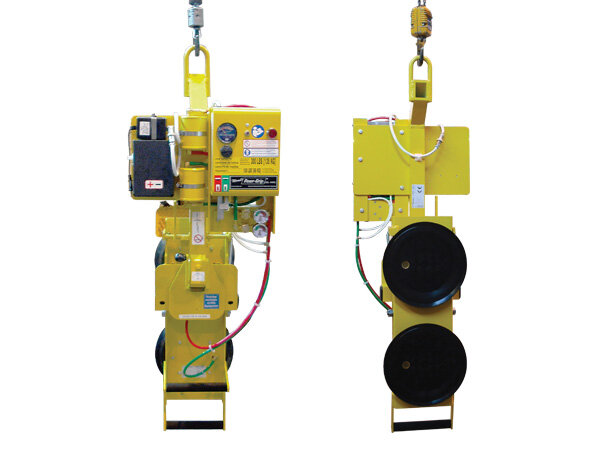

Woods Powr-Grip MRT2 – Vacuum Lift Device
