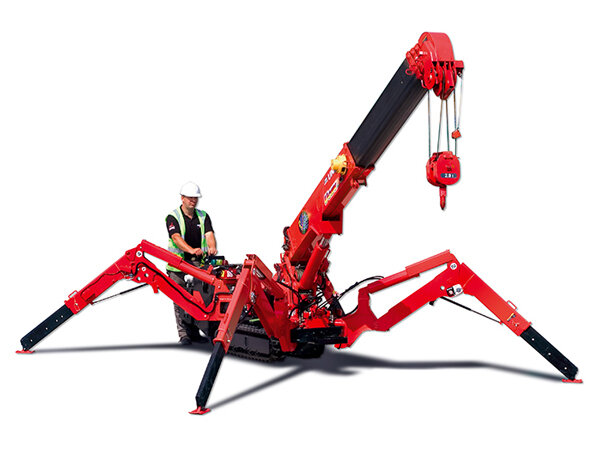

UNIC URW-295 - Mini Spider Crane

Versatile, powerful and compact, the UNIC 295 sets the benchmark for precision engineering and unparalleled lifting technology. The 8.65m boom provides a maximum lifting height of 8.8m, whilst an optional fly jib gives a further 1500mm reach.

Capacity 2.9t x 1.4m
Total width 0.6m
Max working radius 8.41m
Max boom length 8.65m
Max lifting height 8.8m (9.8m with fly jib, 10.47 with fixed hook)
Petrol powered, optional LPG dual, electric dual and diesel
Battery crane option also available for sensitive environments
Zero length increase with electric option (except diesel)

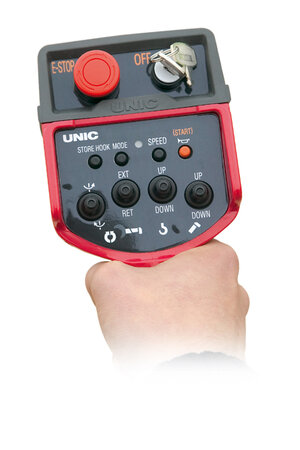

Radio remote control as standard (cable remote optional)
Working area limitation
Optional slew limitation
Intelligent throttle activation for economy and ecology
Optional low marking tracks
Optional 300kg capacity searcher hook
Optional 700kg capacity searcher hook and fly jib
Maximum wind speed for safe use is 36km/h, 22mph or 10m/s

Ref: MCU295

Capacity: 2.9t x 1.4m
Max Lifting Height: 8.8m
Total Width: 0.6m
Weight: 1850-2090kg

Contact Sales

Add to Enquires

Features

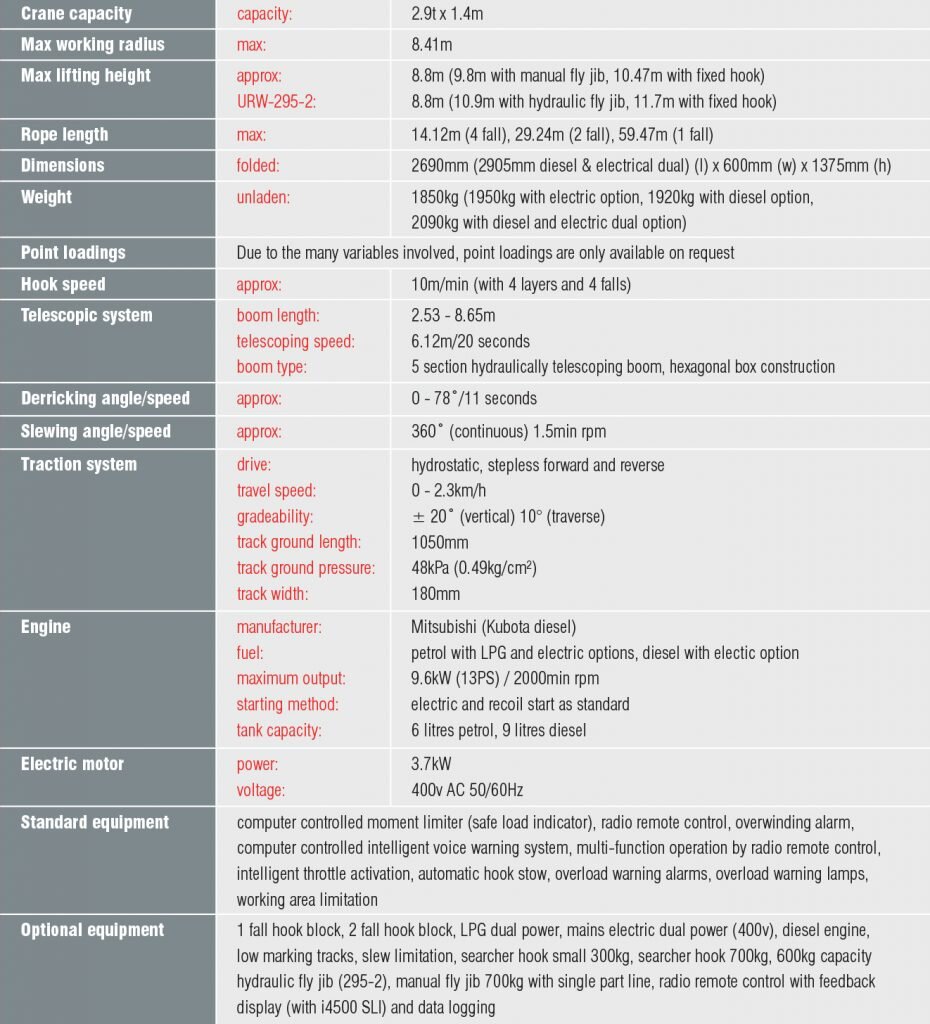

Technical Table

Dimensions

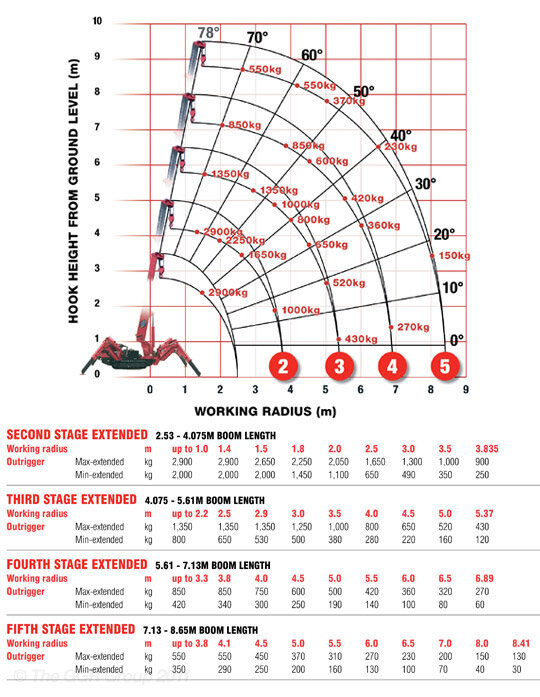

Boom Stages

Fall Stages

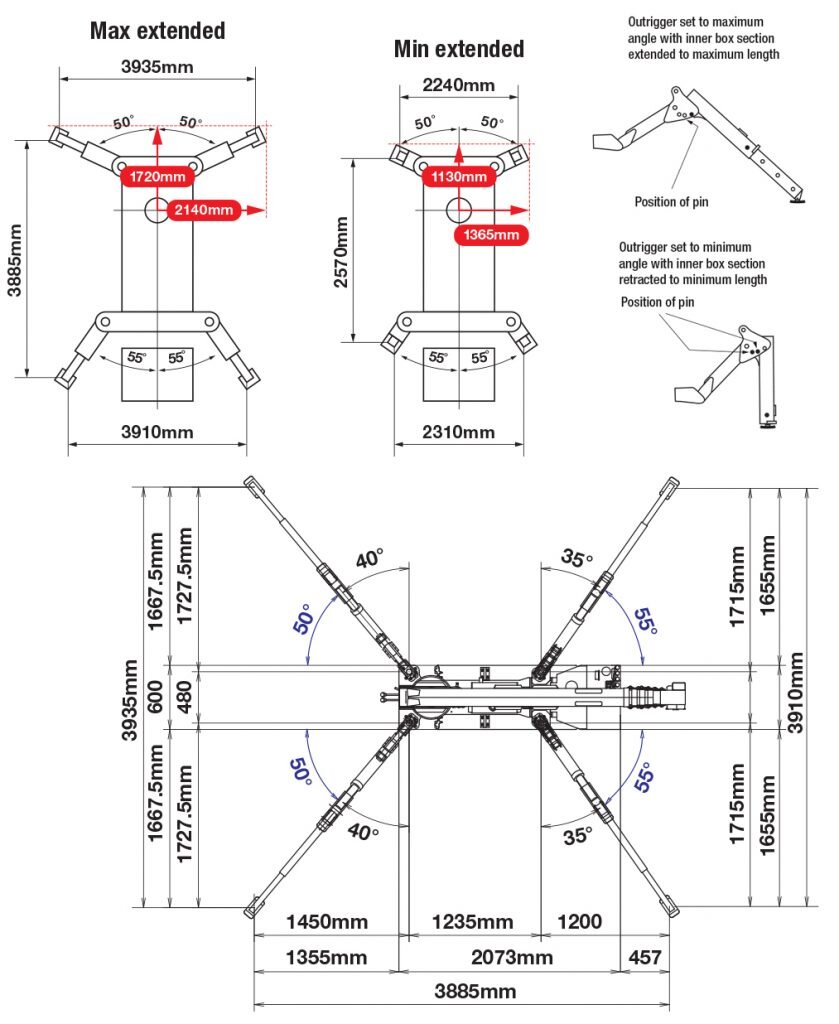

Outrigger Specs

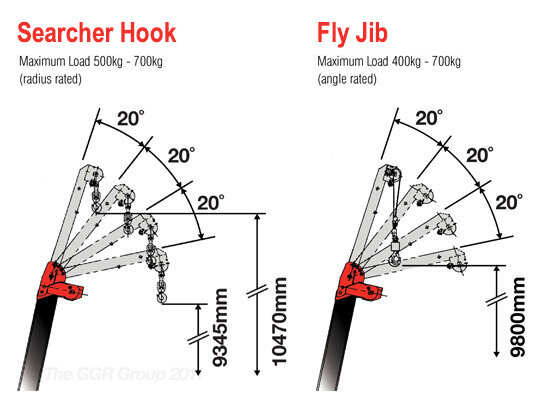

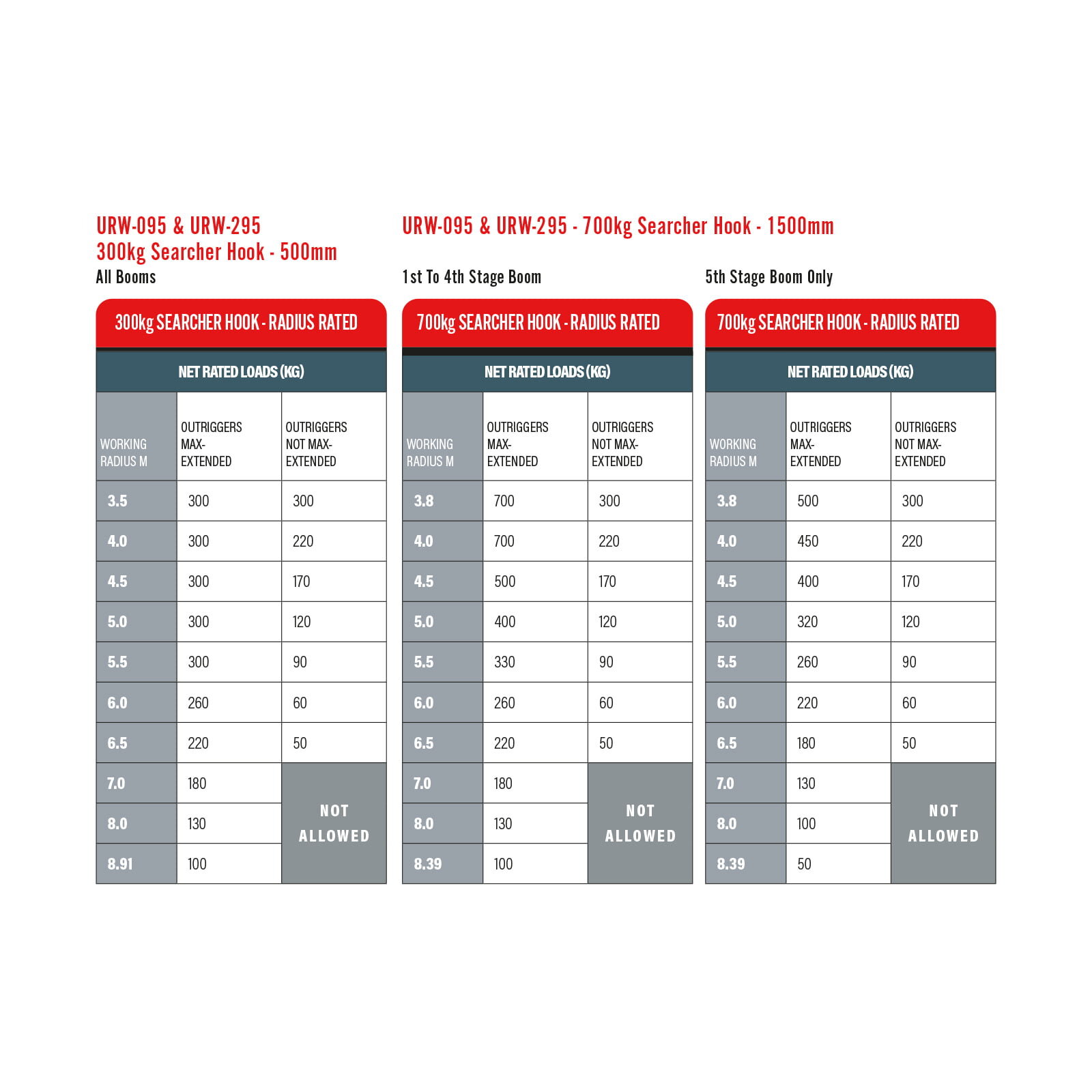

Searcher Hook

Searcher Hook & Fly Jib Max Load

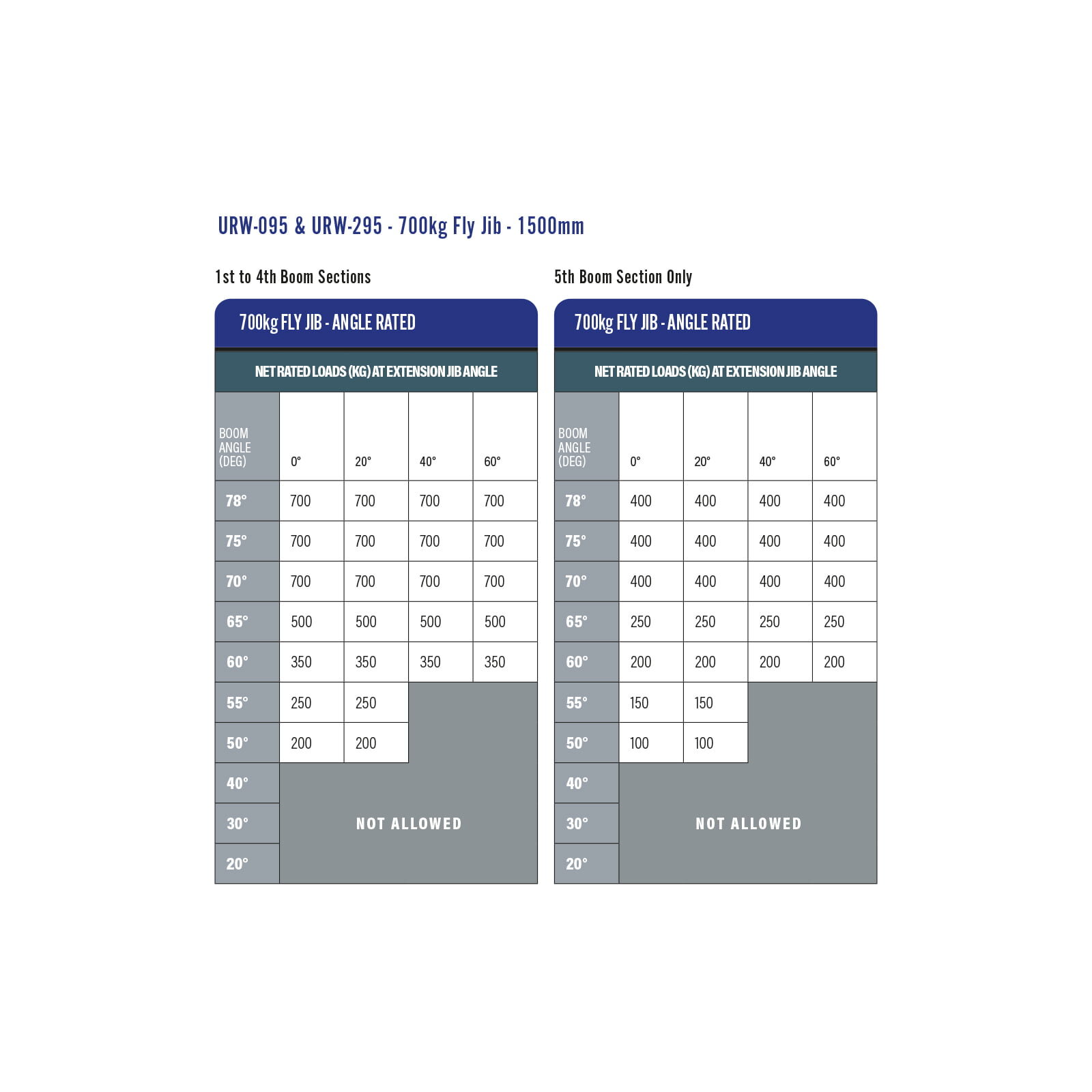

Fly Jib Working Ranges

Specification

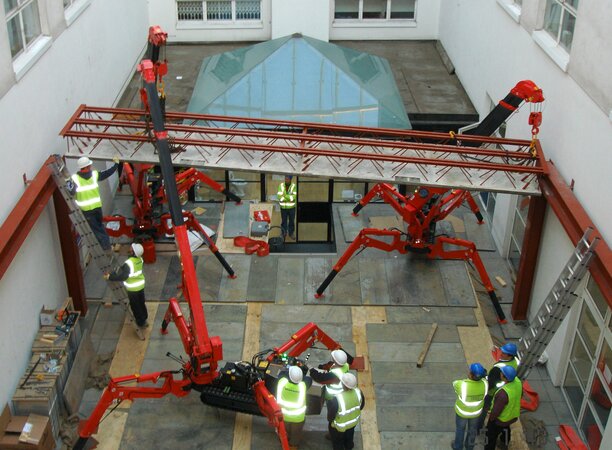

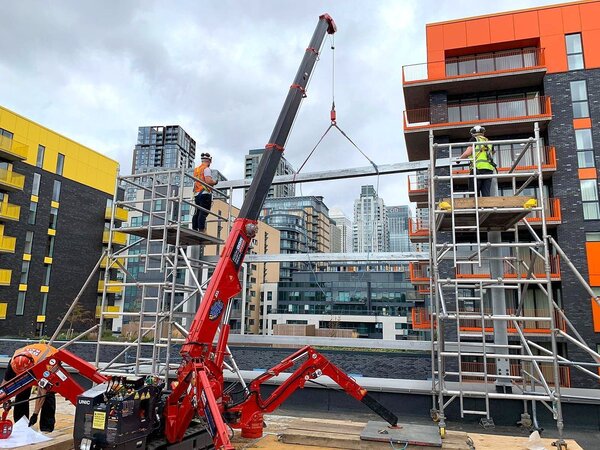

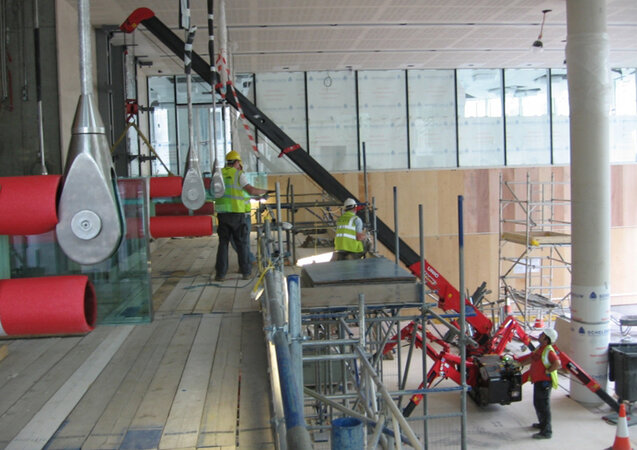

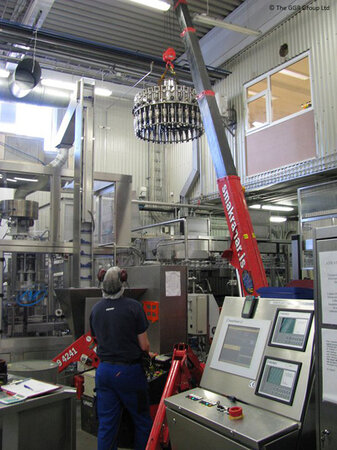

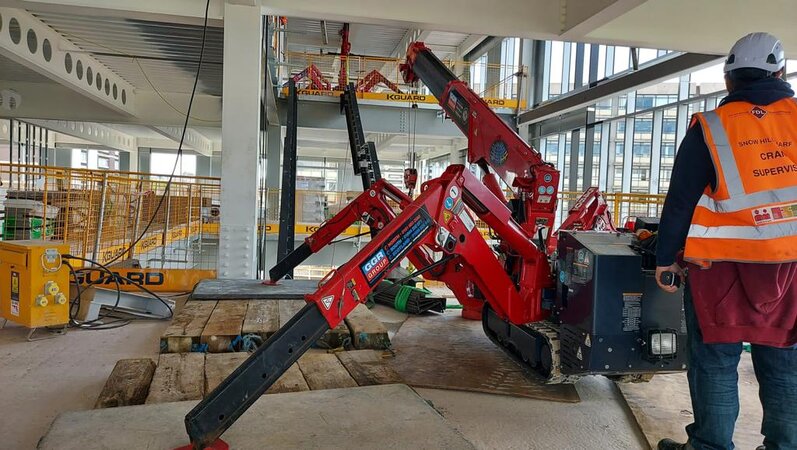

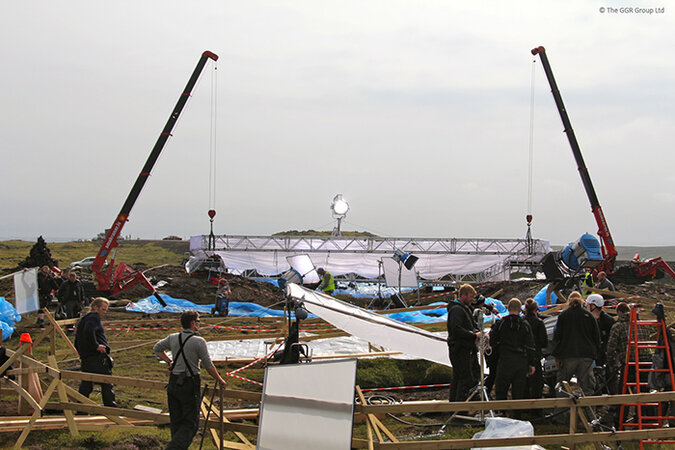

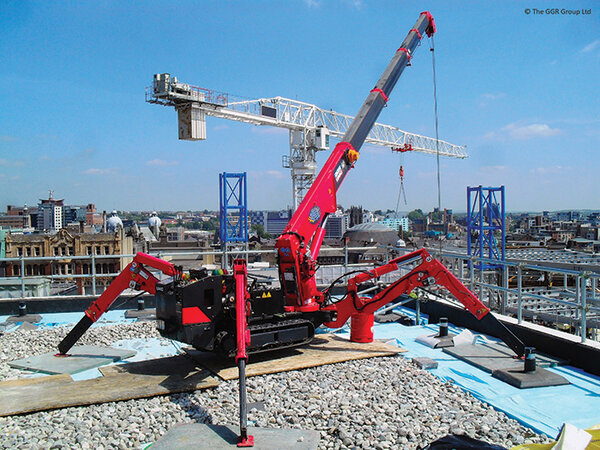

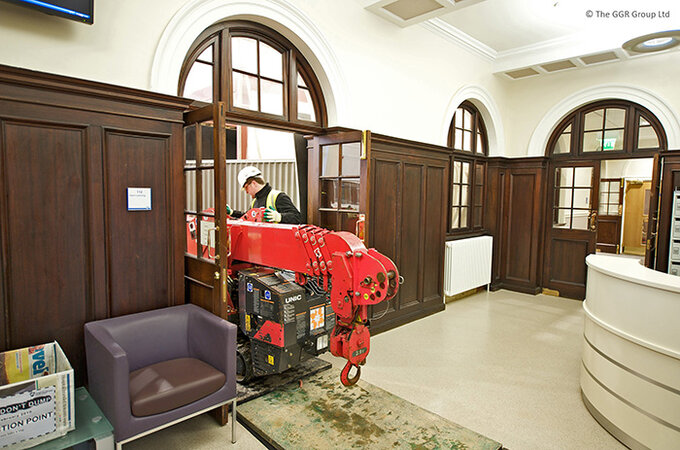

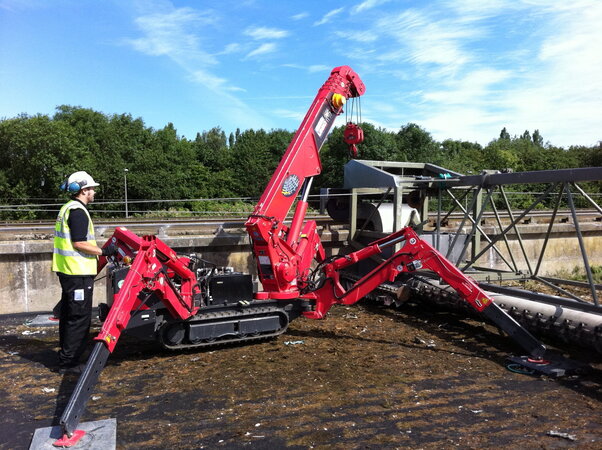

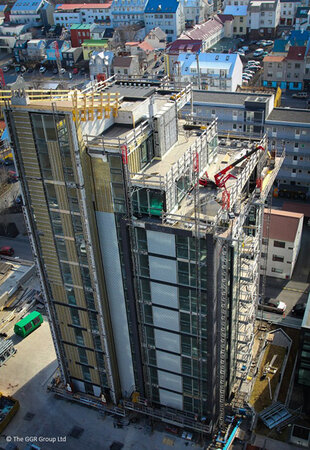

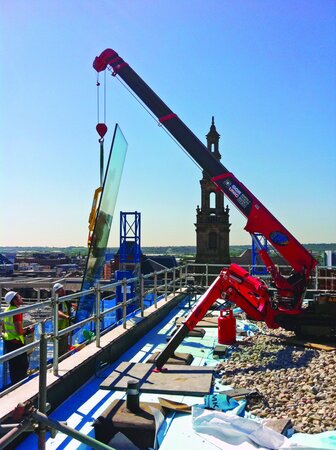

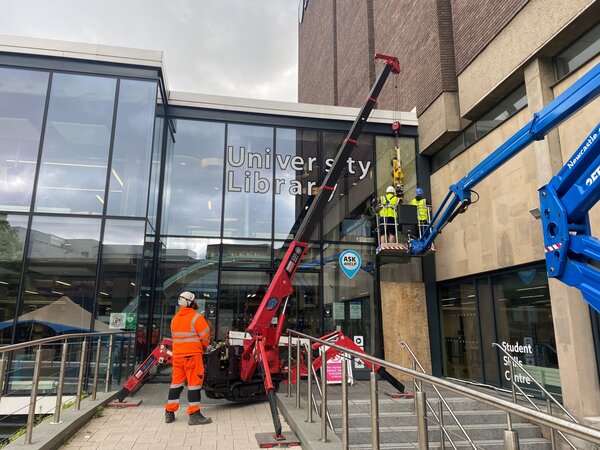

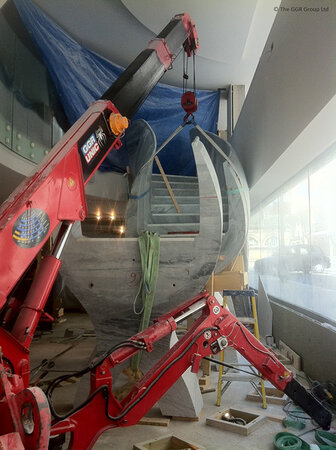

Featuring Lift-Smart Advanced Safety System, the URW-295 includes a safe load indicator to prevent the crane operating outside of its safe working envelope. The UNIC URW-295 has been used for a broad variety of applications, from construction work and plant maintenance, to steel erection, cladding installation, railway maintenance and more.

A comprehensive Contract Lift Service is available with all our cranes to manage all aspects of your lifting requirements.

If you are looking to hire or purchase a UNIC URW-295, or require any further information, contact GGR Group today.

Dimensions

Capacity:

2.9t x 1.4m

Maximum Working Radius:

8.41m

Maximum Lifting Height:

8.8m (9.8m with manual fly jib, 10.47m with fixed hook)

Rope Length:

14.12m (4 fall), 29.24m (2 fall), 59.47m (1 fall)

Length (Folded):

2690mm (2905mm diesel & electrical dual)

Width (Folded):

600mm

Height (Folded):

1375mm

Weight (Unladen):

1850kg (1950kg with electric option, 1920kg with diesel option, 2090kg with diesel and electric dual option)

Traction System

Drive:

hydrostatic, stepless forward and reverse

Travel Speed:

0 - 2.3km/h

Gradeability:

± 20˚ (vertical) 10° (traverse)

Track Ground Length:

1050mm

Track Ground Pressure:

48kPa (0.49kg/cm²)

Track Width:

180mm

Steering Angle:

Min Turning Radius:

Front Tyre Size:

Rear Tyre Size:

Power Plant

Fuel:

petrol with LPG and electric options, diesel with electic option

Manufacturer:

/Manufacturers/Furukawa UNIC Corporation

Maximum Output:

9.6kW (13PS) / 2000min rpm

Starting Method:

electric and recoil start as standard

Tank Capacity:

6 litres petrol, 9 litres diesel

Electric Motor Power:

3.7kW

Electric Motor Voltage:

400v AC 50/60Hz

Battery Charger:

Telescopic System

Hook Speed:

10m/min (with 4 layers and 4 falls)

Boom Length:

2.53 - 8.65m

Telescoping Speed:

6.12m/20 seconds

Boom Type:

5 section hydraulically telescoping boom, hexagonal box construction

Derricking Angle/Speed:

0 - 78˚/11 seconds

Slewing Angle/Speed:

360˚ (continuous) 1.5min rpm

Equipment

Standard Equipment:

computer controlled moment limiter (safe load indicator), radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, overload warning alarms, overload warning lamps, working area limitation

Optional Equipment:

1 fall hook block, 2 fall hook block, LPG dual power, mains electric dual power (400v), diesel engine, low marking tracks, slew limitation, searcher hook small 300kg, searcher hook 700kg, 600kg capacity hydraulic fly jib (295-2), manual fly jib 700kg with single part line, radio remote control with feedback display (with i4500 SLI) and data logging

Accessories

Outrigger Mats

Placed under a crane’s outrigger feet, these strong and durable protection mats spread the load to create a more stable lifting base and to reduce floor loading.

Tracking Mats

These virtually indestructible anti-slip tracking mats offer grip, traction and temporary access for moving compact cranes and vehicles across soft or easily damaged terrain.
